Product Description

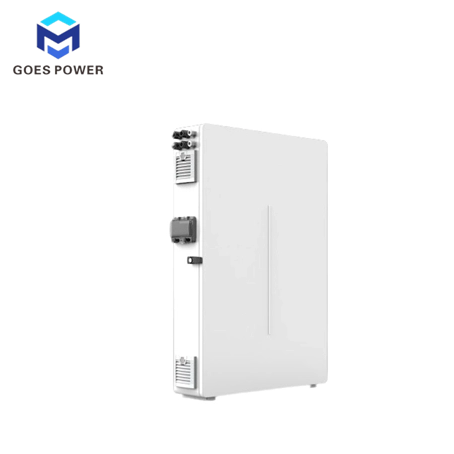

Home energy storage is an intelligent energy management solution for home users. Through home energy storage systems, such as home battery storage or thermal storage technology, residents can store excess electricity and release it during peak hours, optimizing energy utilization and reducing the difference between peak and valley electricity consumption.
|
Application
1. Saving bill with PV In the daytime, the PV will power to the load and store the excess power in the batteries. In the evening, use the power from the batteries to power the load.
2. Ensure uninterrupted power supply When there is no PV and the grid power failure, lithium battery will take the load, to ensure uninterrupted power supply as power system.
3. Peak-to-valley spread arbitrage Storing capacity on batteries when tariffs low using battery capacity when tariffs peak. Save on peak rate costs
|
Data Sheet
| Nominal Voltage | 51.2 V |
| Working Voltage Range | 48-57.6 V |
| Nominal Battery Energy | 10.24 kWh |
| Nominal Current (Recommended) | 50 A (0.5 C) |
| Battery Cable Rating | 100 A, each cable |

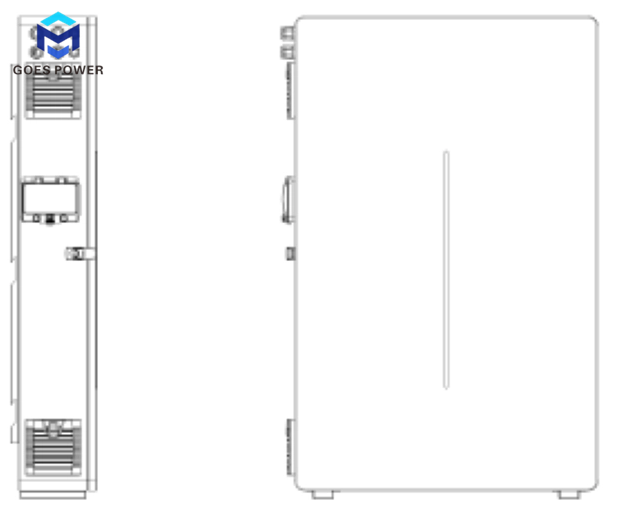

| Dimension (W*D*H) | 640*164*100 |
| Weight | 70Kg |
| Protection Level | IP54 |
| Warranty | 3 years |
|
System Advantages
1. High Energy Density Design
2. Indoor/Outdoor Compatible
3. Plug & Play
4. Slim-Steady Design
5. Compatible with various inverter brands
|
Comment & FAQ
1.Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China
2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production;Always testing every product before despatching the shipments
3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems
4.Where is your Manufacturer located? How can I visit there?
A :Our factory located in No.6,LinquanEastRoad,FeidongNewCityEconomic DevelopmentZone,231600,Anhui Province PRC
5.Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.
6.Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
|
Avaliable Models
MODEL | 4850HW | 4880HW | 48100HW | 48120HW | 48150HW | 48200HW |
Rate voltage(Vdc) | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 |
Rate capacity(AH) | 50 | 80 | 100 | 120 | 150 | 200 |
Energy storage(KWH) | 2.56 | 4.096 | 5.12 | 6.144 | 7.68 | 10.24 |
Cycle life | ≥6000 cycles to85%DOD | |||||
Months self discharge | ≤2% | |||||
Efficiency of charge | 100%at 0.2C | |||||
Efficiency of discharge | 96-99%at 1C | |||||
Charge voltage | 58.4 | |||||
Charge mode | 0.2C to 58.4V,then 58.4V,charge current to 0.02C(CC/CV) | |||||
Charge current(A) | 10 | 16 | 20 | 24 | 30 | 40 |
Max.Chargecurrent(A) | 50 | 80 | 100 | 120 | 120 | 200 |
Charge cut-off voltage(VDC) | 58.4 | |||||
Contiunous current(A) | 50 | 80 | 100 | 120 | 120 | 200 |
Discharge cut-off voltage(VDC) | 44.8 | |||||
Charge temperature | 0℃to45℃(32Fto113F)@60±25%Relative Humidity | |||||
Discharge temperature | -20℃to60℃(-4Fto140F)@60±25%Relative Humidity | |||||
Storage temperature | 0℃to40℃(32Fto104F)@60±25%Relative Humidity | |||||
IPclass | IP43 | |||||
Material system | LiFePO4 | |||||
Case material | Metal | |||||
Case Type | Rack/WallMount | |||||
Pack Dimensions(L*W*H(mm)) | 455*390*150 | 570*410*155 | 570*410*155 | 600*450*190 | 860*485*190 | 860*485*190 |
Package Dimension(L*W*H(mm)) | 610*485*250 | 610*485*250 | 610*485*250 | 675*525*265 | 950*575*250 | 950*575*250 |
Net Weight(kg) | 28.3 | 40.4 | 45.0 | 48.3 | 67.4 | 83.8 |
Gross Weight(kg) | 31.2 | 42.7 | 48.2 | 52.0 | 70.1 | 86.4 |
Terminal | M8 | |||||
Protocol(Optional) | CANBus/RS485/RS232 | |||||
