Product Description
1. Energy Management System
EMS is a centralized energy management and data monitoring center for the whole energy storage power station system Data acquisition Control function HMI
2.Battery Storage System
Battery Management System(BMS) Battery Moulde&Pack Battery Rack Battery Cooling System Battery Fire Suppression System DC/AC Panel IEC/CE/GB-T certified
3.Power Conversion System Complete product range(30kW~4000kW) , compliant to IEEE standards and applicable to various applications. Real-time active/reactive power scheduling & LVRT functions. Advanced droop control method, up to 99% power sharing efficiency for parallel connection of voltage sources . IEC/ CE/GB-T certified
|
Application
Full scenario application: Applicable to charging stations, small businesses, commercial expansion and other scenarios
|
Data Sheet
| Model | S10P |
| Energy storage Capacity | 645kwh |
| Rated Power | 300kw |
| Connected to the power grid parameters | 380Vac@50Hz |
| Auxiliary Power Supply | ～20kW |
| Battery Management System | Integration |
| Battery Type | Lithium iron phosphate battery |
| Maximum charge discharge rate | 0.5C/0.5C（Sustainable） |
| Cooling Method | Air cooling |
| Electrical Box Protection Level | IP20 |
| Working Temperature | -25~55℃ |
| Relative Humidity | 0-95% Non-condensing |
| Fire protection System | Precision fire protection（Can reach the level of electrical box） |
| Operating Temperature Difference | ≤8°C |
| Battery compartment Protection Level | IP54 |
| Communication Methods | Ethernet（Optional configuration4G） |
| Main Configurations | 280AhCell, PCS system, liquid cooling system, fire protection system |
| Dimension (L*W*H(mm)) | 3500*2438*2896 |
| Weight | 6T |
| Cell type | 3.2V280Ah |
| Cell Cycle life | ≥8000times (25℃，0.5℃ charge/discharge) |
|
System Advantages

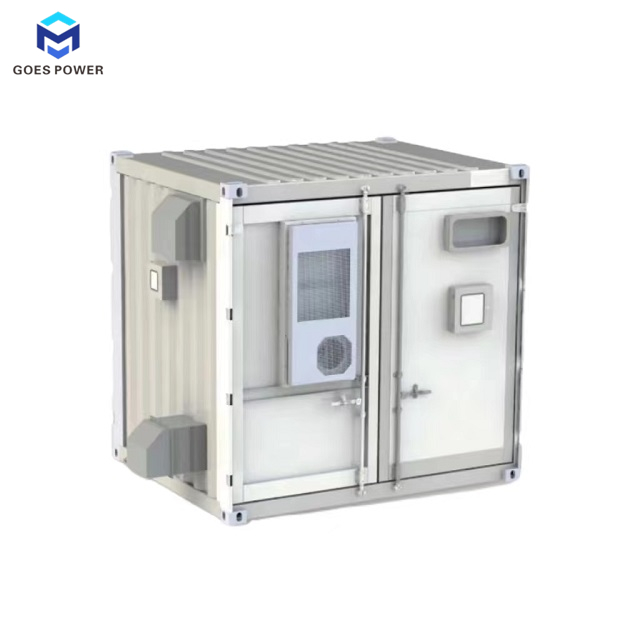

1. High integration: 10 feet container battery, EMS, PCS, fire. ... . Plug and play, power can be run.
2. High conversion rate: full electric cabinet liquid cooling energy conversion efficiency up to 90%.
3. High safety: lithium iron phosphate energy storage battery is safe and stable, long life.
4. High flexibility: covers an area of less than 10 square meters to support multiple cabinets in parallel, easy installation and expansion.
5. High protection level: The protection level of perfluoroacetone electric box reaches IP67.
|
Comment & FAQ
1.Is the battery safe?
A:Yes,Our products have strict quality inspections before sending,It uses high-quality battery cells. Due to the BMS system, there will be no explosion to protect your safety.
2.What are the advantages of your company?
A:Strong R & D team, independent R & D and production of main parts, to control product quality from the source.
3.Can you supply OEM &ODM service ?
A:Yes, Welcome to contact us for more information.
4.How do you ship the goods since they are high capacity battery ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
|
Avaliable Models
Model | S20P-HSN-ESS |
Energy Storage Capacity | 1075kWh |
Rated Power | 500kW/630kW |
Connected to the power grid parameters | 380Vac@50Hz |
Auxiliary Power Supply | ～20kW |
Battery Management System | Integration |
Battery Type | Lithium iron phosphate battery |
Maximum Charge/ Discharge Rate | 0.5C/0.5C（Sustainable） |
Cooling Method | Air cooling |
Electrical Box Protection Level | IP20 |
Working Temperature | -25～55°C |
Relative Humidity | 0～95%，Non-condensing |
Fire Protection System | Precision fire protection（Can reach the level of electrical box） |
Operating Temperature Difference | ≤8°C |
Battery Compartment Protection Level | IP54 |
Communication Methods | Ethernet（Optional configuration4G） |
Main Configurations | 280AhCell, PCS system, air cooling system, fire protection system |
Dimension | 6058*2438*2896 |
Weight | ～10T |
Cell model | 3.2V280Ah |
Cell cycle life | ≥8000Times（25°C，0.5CCharging and discharging） |
