Gotion
| Nominal Voltage: | |
|---|---|
| Nominal Capacity: | |
| Optimum Working Temperture : | |
| Room Temperture Cycle Life: | |
| Quantity: | |
| Nominal Capacity | 230Ah |
| Nominal Voltage | 3.2V |
| High Temperature Cycle Life | 1500 cycles |
| Charge/Discharge Voltage Range | 2.0V~3.65V/1.8V~3.65V |
| Charge Temperature Range | 0~55℃ |
| Discharge Temperature Range | -30~60℃ |
| ACR | 0.2mΩ≤R≤0.4mΩ |
| DCR | <0.8mΩ |

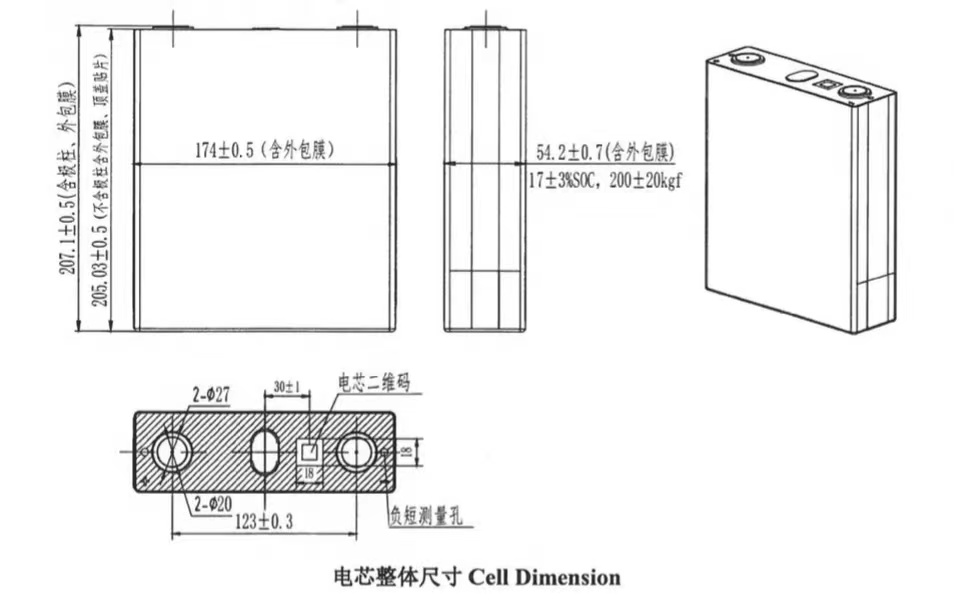

| Dimension | 54.2±0.7mm×174±0.5mm×205.03±0.5mm |
| Weight | 4150g±124g |
Precaution
1.When using a device equipped with a battery, refer to the user manual before use.
2.Check the orientation of the cathode and anode terminals before packaging.
3.The terminal or wire is connected to the cell module, pay attention to the insulation to prevent short circuit.
4.Store the cell in a cool dry place (≤35°C, 30%~50%SOC, Storage ambient humidity < 85% ROH, по
Condensation, charge and discharge once every 3 months) when not in use for a long time.
5.Do not place the cell in direct sunlight or heat source to prevent high temperature of the cell.
6.Do not place the cell outside the operating temperature range specified in this document.
