Gotion
2
| Nominal Capacity: | |
|---|---|
| Nominal Voltage: | |
| Charge Voltage Range: | |
| Discharge Voltage Range: | |
| Optimum Working Temperture : | |
| Quantity: | |
| Parameter | Specifation | Condition |
| Capacity | 21AH | |
| Nominal Voltage | 3.2V | 0.33C |
| Charge/Discharge Voltage | 2.0~3.65V/1.8V~3.65V | >0℃/ ≤0℃,Forbid charging |
| Weight | 435±5g | Including outer film |
| Weight Energy Density | ≥170Wh/Kg | 0.33C/0.33C |
| Volume Energy Density | ≥350Wh/L | 0.33C/0.33C |

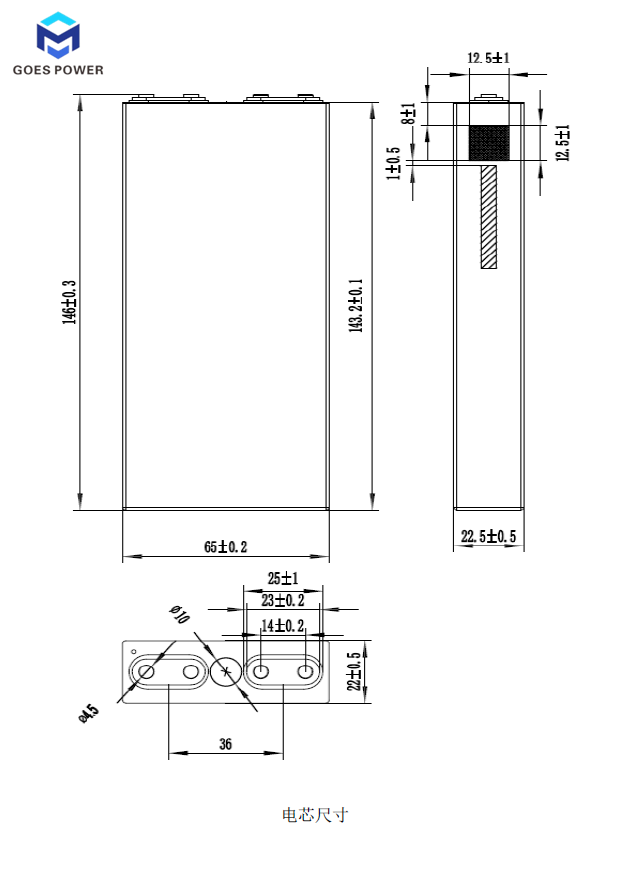

| Dimension | 22.5±0.5mm×65±0.2mm×146±0.3mm |
Precautions
When using a device equipped with a battery, refer to the user manual before use.
2. Check the orientation of the cathode and anode terminals before packaging.
3. The terminal or wire is connected to the cell module, pay attention to the insulation to prevent short circuit.
4. Store the cell in a cool dry place (≤25°C) when not in use for a long time.
5. Do not place the cell in direct sunlight or heat source to prevent high temperature of the cell.
6. Do not wear metal accessories (such as rings, watches, accessories, etc.) when handling cell units.
7. Do not place the cell outside the operating temperature range specified in this document.
Prohibited Items
1.Do not charge more than the maximum charge rate.
2.Do not disassemble or modify the Cell.
3.Do not throw or hit the battery.
4.Do not pierce the battery with a sharp object. (eg nails, knives, pens, electric drills)
5.Do not mix with other cell or module unit.
6.Do not use both new and old cell in PACK.
7.Do not place the cell at a temperature higher than 60 °C.
8.Do not put the cell in a microwave or high pressure container.
9.Do not connect the positive and negative terminals with conductive materials. (eg metal, wire)
10.Do not allow to wet or immerse the cell in water or sea water.
