Gotion
| Nominal Voltage: | |
|---|---|
| Nominal Capacity: | |
| Operating Voltage: | |
| Maximum charging temperature range: | |
| Warranty: | |
| Quantity: | |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 27.0AH |
| Energy Density | ≥140 Wh/kg |
| Maximum continuous charging current | 2.0C (15 ℃～35 ℃, 0%SOC～90%SOC) |
| Maximum continuous discharge current | 6C (Under the condition of 15 ℃~ 40 ℃， charge at 1C to 3.65V followed by constant voltage charging until current drops down to 0.05C, standing for 2h. discharge at 6C to 2.0V ， and the temperature rise of the cell was < 30 ℃) |
| Room Temperature Cycle Life | ≥1000 times(25℃ , 1C/4C, （10～40）kgf Clamp force, See 7.13.1 for the test method, 80% EOL) |

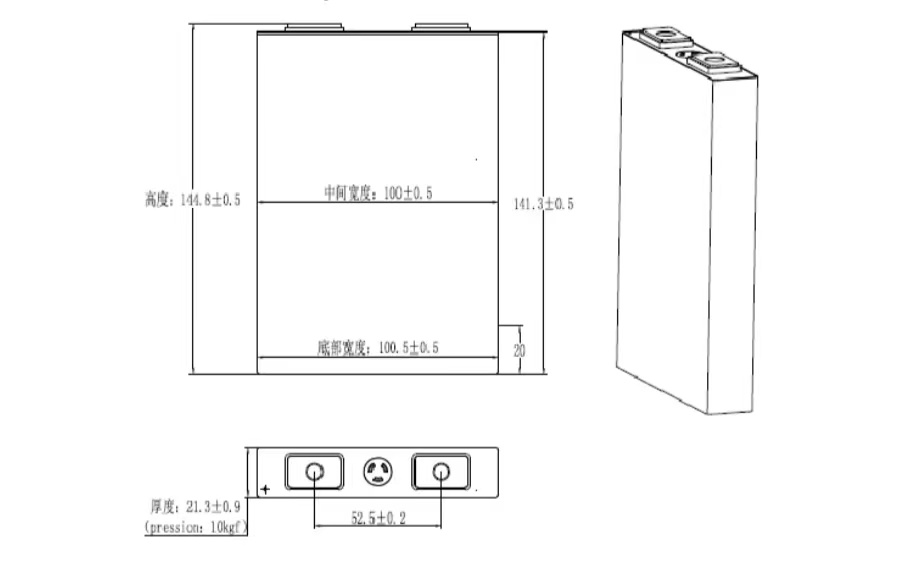

| Dimension | （21.3±0.9）mm×(100.5±0.5） mm×（144.8±0.5）mm |
| Weight | 605 g±18 g |
| Altitude | ≤5000 m |
Battery
The conditions of use are as follows:
a) The batteries used in the same cell should not exceed 4 batches at most (3 batches are recommended), and the difference in cell production time should not exceed 30 d. Different types of batteries should not be mixed into groups, and new and old should not Mixed use of batteries;
b) In the process of forming batteries from a cell, ensure that welding slag or other metal foreign objects produced by welding cannot fall on the surface of the single cell or between the cell and the cell;
c) The cell and the batteries box should be insulated to avoid electrical short circuit;
d) The batteries should have a function that is not easy to cause a short circuit. The batteries should not be used in a high electrostatic environment that may damage the protection device.
