Product Description

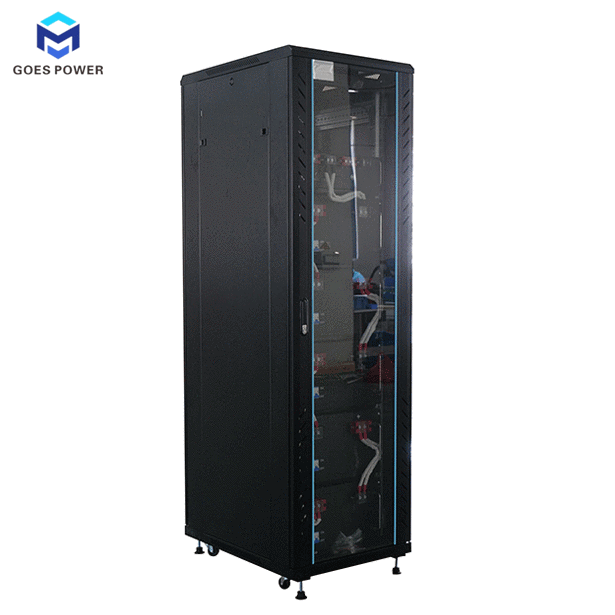

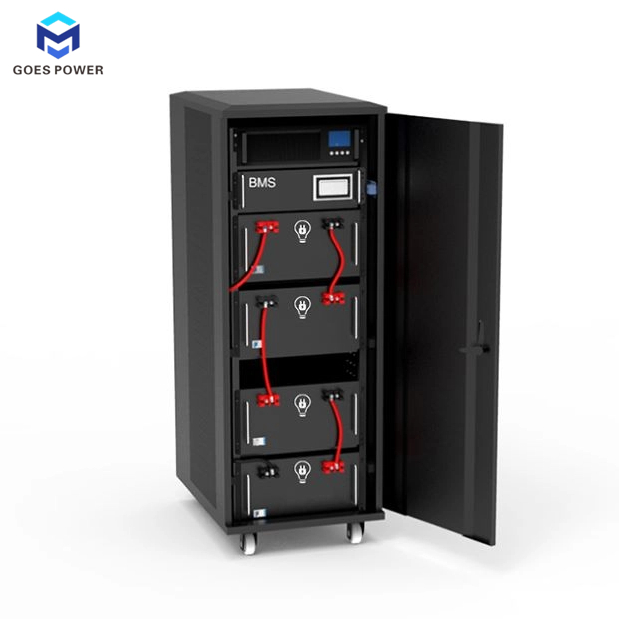

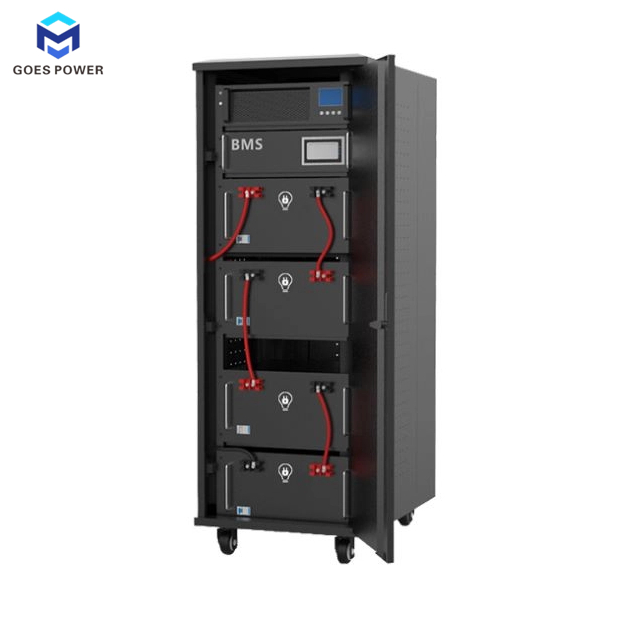

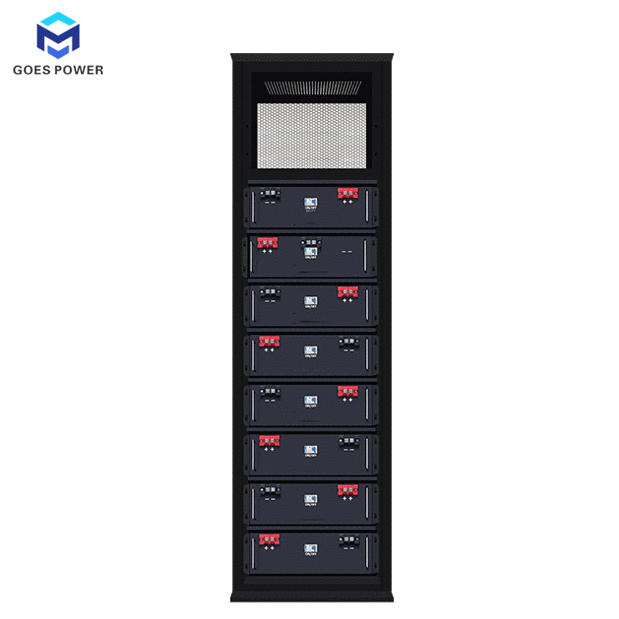

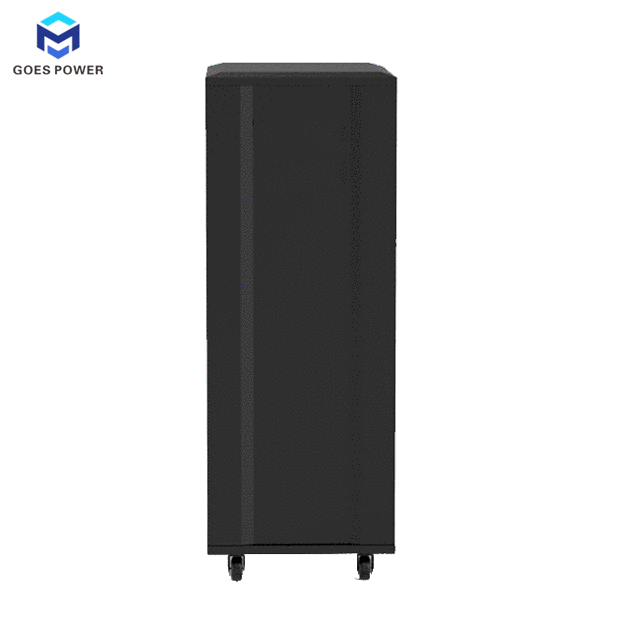

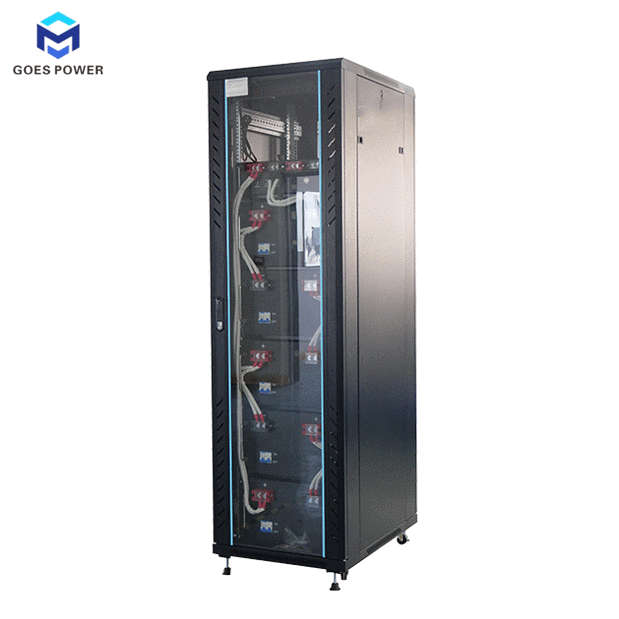

Power system lithium iron phosphate battery module is a high-energy and pollution-free power type green battery. A battery module is composed of multiple battery units in series and parallel.
|
Application
Hospital , Bank, Airport ,Power plant and Other Systems
Solar energy storage cabinet
Long-last UPS battery
Telephone Switch, Telecom Room SMR, Hospitals.
Banks and large and medium-sized enterprises appllcatlondistributed server room independent UPS
|
Data Sheet
Core Material | LiFePo4 |
Rated Voltage | 256V/384V/409.6V/512V/6144V |
Series Parallel Mode (S series, P parallel) | 80S1P/YY384100HV/YY410100HV/YY512100HV/YY614100HV |
Rated Capacity | 240@0.2C/100/100/100/100 |
Cycle Life | 6000 times @ 25℃/ ≥4000 cycles to 85% DOD |
Application | Hospital, bank data center, wall-mounted home, enterprise energy storage backup power supply, wind complementary system, office, military, base station and other uninterrupted energy storage power supply |
Charging Mode (CC/CV) | CC/CP/VP/CV |
Charging Current | 0.2C (Standard) |
Charge Cut Off Voltage | 292V/CELL/432V/460.8V/576V/691.2V |
Max Charge Current | Max1C@25°/100A/100A/100A/100A |
Discharge Cut Off Voltage | 224V/336V/358.4V/448V/548.8 |
Discharge Mode | CC/CP/VP |
Discharge Current | 0.5C@25℃ |
Max Discharge Current | Max1C @25℃ |
Charge Working Temperature Range | 0~+50℃ |
Discharge Working Temperature Range | -20 +55℃ |
Storage Environment | 25±5℃/ 0°-40° |
Warranty | 5 years |
Net Weight | 485KGS/150KGS/145KGS/255KGS/305KGS |
Dimension (L*W*H) | 600*800*2000/600*650*1880/600*650*2100/2*(600*650*2100) |
|
System Advantages
The power supply system adopts high quality battery cell, scientific internal structure design, advanced production process manufacturing, with long battery life, high specific energy, low internal resistance, high current discharge performance, wide operating temperature range and other characteristics, safe and reliable, is an ideal power supply product.
The advanced lithium iron phosphate technology is price competitive, easy to install, efficient to round trip, and operates over a wider temperature range to provide the most reliable performance.
|
Comment & FAQ
1.Are you a Manufacturer or trading company?
A: We are a Professional Energy Storage System Manufacturer and Listed Group.
2. Do you have any MOQ limit for outdoor cabinet ?
A: Can be offer 1 pc sample that you feel our high quality and excell service.
3.What is your payment terms?
A: Normally our payment term is 30% advanced by T/T, Balance before shipment.
4. Can you provide OEM products with my brand and logo?
A: No problem. Just send us your brand Letter of Authorization.
|
Avaliable Models
MODEL | GP384100HV | GP410100HV | GP512100HV | GP614100HV |
Rate voltage(Vdc) | 384 | 409.6 | 512 | 614.4 |
Rate capacity(AH) | 100 | 100 | 100 | 100 |
Energy storage(KWH) | 38.4 | 40.96 | 51.2 | 61.44 |
Cycle life | ≥4000 cycles to 85%DOD | |||
Months self discharge | ≤2% | |||
Efficiency of charge | 100%at 0.2C | |||
Efficiency of discharge | 96-99%at 1C | |||
Charge voltage(Vdc) | 432 | 460.8 | 576 | 691.2 |
Charge mode(Per cell) | CC/ | CV | ||
Recommend Charge current(A) | 30 | 30 | 30 | 30 |
Max.Charge current(A) | 100 | 100 | 100 | 100 |
Charge cut-off voltage(VDC) | 432 | 460.8 | 576 | 691.2 |
Contiunous current(A) | 100 | 100 | 100 | 100 |
Discharge cut-off voltage(VDC) | 336 | 358.4 | 448 | 548.8 |
Charge temperature | 0℃to 45℃(32F to 113F)@60±25%Relative Humidity | |||
Discharge temperature | -20 ℃ to 60℃(-4F to 140F)@60±25%Relative Humidity | |||
Storage temperature | 0℃to40℃(32F to 104F)@60±25%Relative Humidity | |||
IP class | IP63 | |||
Material system | LiFePO4 | |||
Case material | Metal | |||
Case type | Rack Mount | |||
Pack Dimensions L*W*H(mm) | 600*650*1880 | 600*650*1880 | 600*650*2100 | 2*(600*650*1880) |
Package Dimensions L*W*H(mm) | 620*670*2000 | 620*670*2000 | 620*670*2120 | 2*(620*670*2000) |
Net Weight(kg | 150 | 145 | 255 | 305 |
Gross Weight(kg | 153 | 193 | 305 | 385 |
Terminal | M8 | |||
Protocol(Optional | CANBus/RS485/RS232 | |||
SOC(Optional) | LED/LCD | |||
The quality assurance period | 60 months | |||
