Gotion
| Nominal Capacity: | |
|---|---|
| Nominal Voltage: | |
| Optimum Working Temperture : | |
| Maximum Working Voltage: | |
| Room Temperture Cycle Life: | |
| Warranty: | |
| Quantity: | |
| Nominal Capacity/Voltage | 87Ah/3.2V |
| Charge/Discharge Voltage Window | 2.5~3.65V(>0℃) / 2.0~3.65V(≤0℃) |
| Weight Energy Density | ≥175Wh/Kg(0.33C/0.33C) |
| Volume Energy Density | ≥360Wh/L(0.33C/0.33C) |
| AC Resistance | 0.3mΩ≤R≤0.6mΩ (25℃±2℃) |
| DC Resistance | ≤1.5mΩ (50%SOC,25℃±2℃) |
| Charge Temperature Range | -20~55℃ |
| Discharge Temperature Range | -30~60℃ |

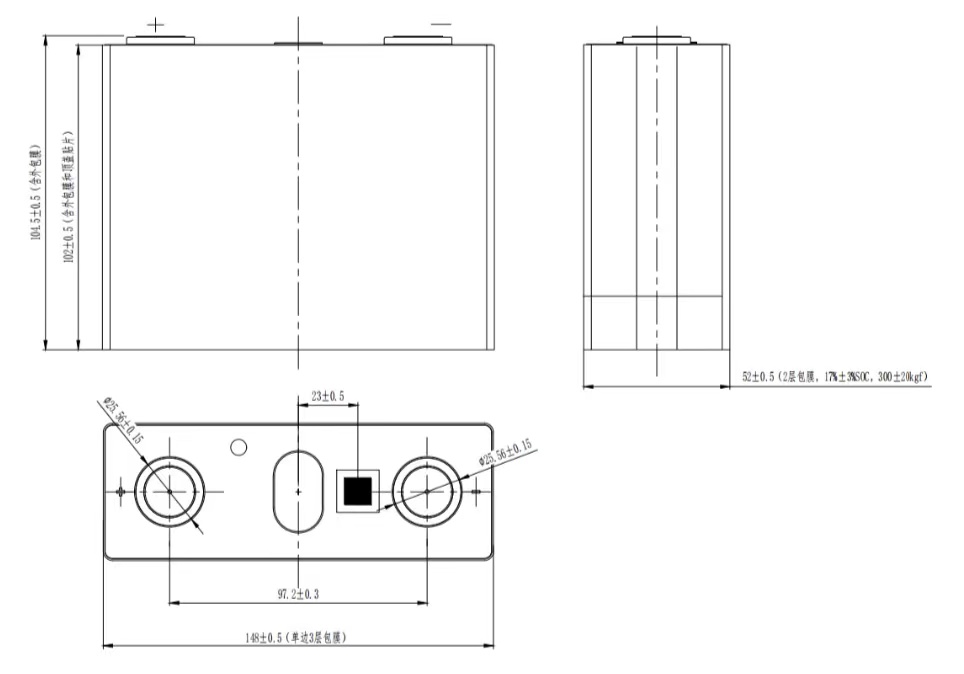

| Dimension | 52±0.5mm×148±0.5mm×104.5±0.5mm |
| Weight | 1625g±50g |
Precaution
When using a device equipped with a battery, refer to the user manual before use.
Check the orientation of the cathode and anode terminals before packaging.
The terminal or wire is connected to the cell module, pay attention to the insulation to prevent short circuit.
Store the cell in a cool dry place (≤35°C, 30%~50%SOC, Storage ambient humidity < 85% ROH, no Condensation, charge and discharge once every 3 months ) when not in use for a long time.
Do not place the cell in direct sunlight or heat source to prevent high temperature ofthe cell.
Do not wear metal accessories (such as rings, watches, accessories, etc.) when handling cell units.
