Gotion
| Nominal Capacity: | |
|---|---|
| Nominal Voltage: | |
| Charge Tempereture Range: | |
| Discharge Temperature Range: | |
| Charge Current: | |
| Warranty: | |
| Quantity: | |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 30Ah |
| Charge/Discharge Voltage Window | 2.0V~3.65V(>0℃) / 1.8V~3.65V(≤0℃,No continuous charging) |
| Mass Energy Density | ≥166Wh/Kg(0.33C/0.33C) |
| Volumetric Energy Density | ≥365Wh/L(25℃±2℃) |
| AC Internal Resistance | 0.6mΩ~1.2mΩ (50%SOC ,25℃±2℃) |
| DC Internal Resistance | ≤3mΩ (0.33C/0.33C) |
| High Temperature Cycle Life | 1000 times(80% capacity retention rate :45°C,Discharge 1C to 2.0V) |

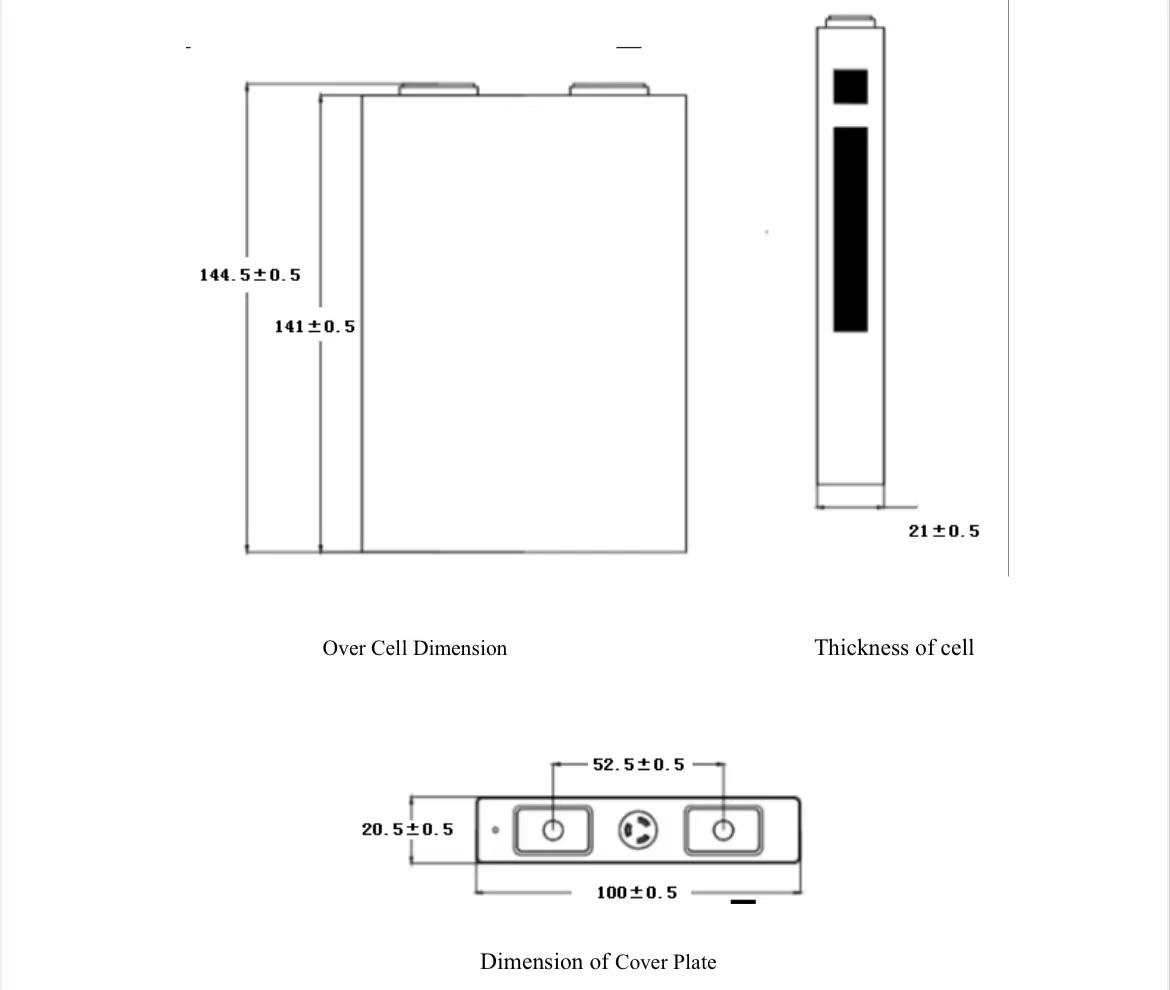

| Dimension | 21±0.5mm×100±0.3mm×141±0.5mm |
| Weight | 615g±18g |

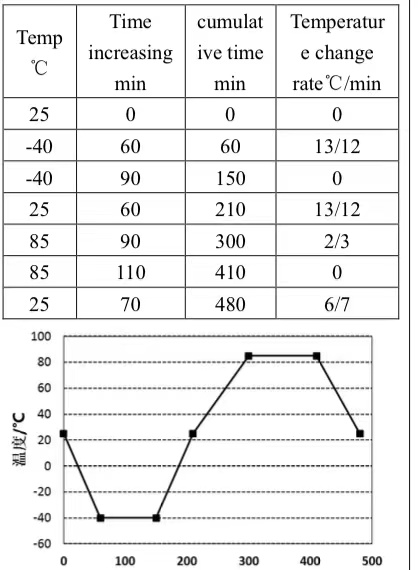

Temperature Cycle Test
No exlposion,no fire,no leakage.
Precautions
1.When using a device equipped with a battery, refer to the user manual before use.
2.Check the orientation of the cathode and anode terminals before packaging.
3.The terminal or wire is connected to the cell module, pay attention to the insulation to prevent short circuit.
4.Store the cell in a cool dry place (≤25°C) when not in use for a long time.
5. Do not place the cell in direct sunlight or heat source to prevent high temperature of the cell.
6.Do not wear metal accessories (such as rings, watches, accessories, etc.) when handling cell unit.
7.Do not place the cell outside the operating temperature range specified in this document.
