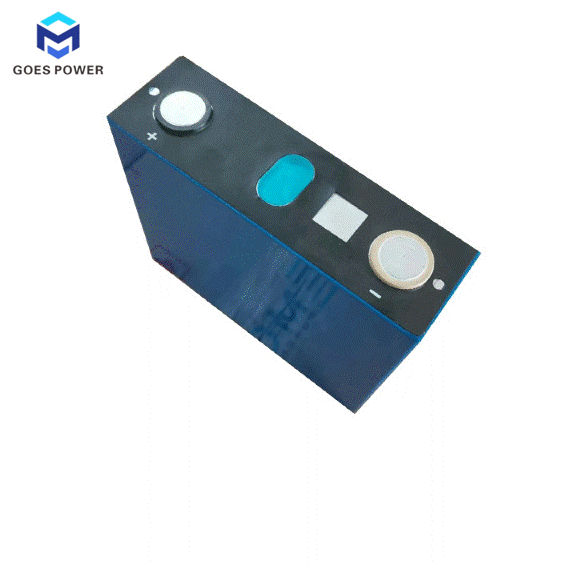

Gotion
| Nominal Capacity: | |
|---|---|
| Charge Voltage Range: | |
| Discharge Energy: | |
| Optimum Working Temperture : | |
| Room Temperture Cycle Life: | |
| Warranty: | |
| Quantity: | |
| Nominal Voltage/ Capacity | 3.2V/150Ah |
| Charge/Discharge Voltage Range | 2.0 V～3.65V (T>0°C） / 1.8 V～3.65V (T≤0℃， Forbid continuous charging) |
| Weight Energy Density | 175Wh/kg (0.33C) |
| Volume Energy Density | 353Wh/L (0.33C) |
| ACR | 0.2mΩ≤R≤0.3mΩ (25℃±2℃) |
| DCR | <1.0mΩ （50%SOC@3C30S，25±2℃） |
| Charge/Discharge Temperature Range | 0~60℃/-30~60℃ |
| High Temperature Cycle Life | 1500 cycles (45℃，cycle test by the 150A step charge and 150A discharge under 150 ±50kgf preload) |

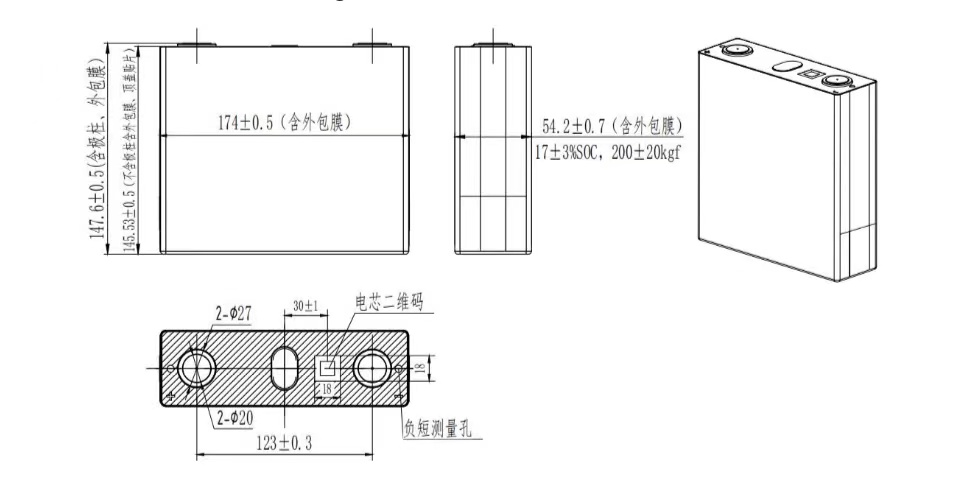

| Dimension | 54.2±0.7mm×174±0.5 mm×147.6±0.5mm（including outer film thickness and terminals） |
| Weight | 2816g±84g |
Precautions
When using a device equipped with a battery, refer to the user manual before use.
Check the orientation of the cathode and anode terminals before packaging.
The terminal or wire is connected to the cell module, pay attention to the insulation to prevent short circuit.
Store the cell in a cool dry place (≤35°C, 30%~50%SOC，Storage ambient humidity < 85% ROH, no Condensation, charge and discharge once every 3 months ) when not in use for a long time.
Do not place the cell in direct sunlight or heat source to prevent high temperature of the cell.
Do not wear metal accessories (such as rings, watches, accessories, etc.) when handling cell units.
