| Nominal Voltage/Capacity | 3.2V/280Ah |
| Charging Cut-off Voltage(Umax) | 3.65V |
| Discharging Cut-off Voltage(Umin) | 2.5 V (T >0°C) 2.0 V (T ≤0°C) |
| Standard Charging Power | 448W(25°C±2°C, 0.5P) |
| Max Continuous Charging Power | 896W(25°C ±2°C, lP) |
| Standard Discharging Power | 448W(0.5P) |
| Max. Continuous Discharging Power | 896W(25°C ±2°C, 1P) |
| Charging Temperature | 0~60℃ |
| Discharging Temperature | -30~60℃ |

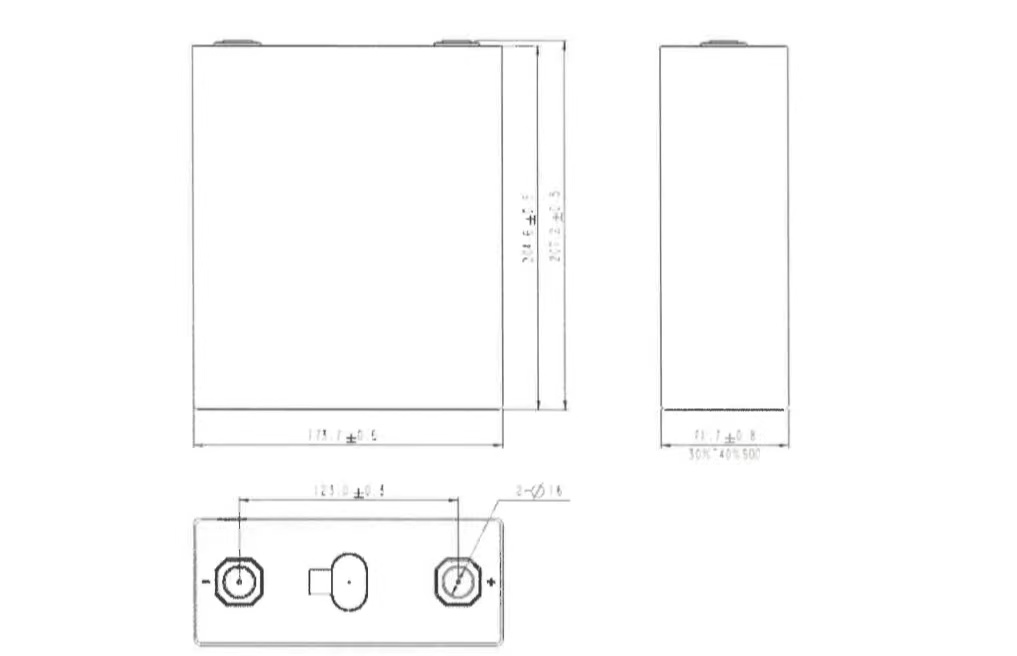

| Dimension(L×W×H) | 71.7±0.8mm×173.7±0.5mm×207.2±0.5mm(With Terminal) |
| Weight | 5490g±300g |
Operation Precautions
It is strictly forbidden to immerse the cell in water. When it is not in use, it should be placed in a cool and dry environment.
Do not over-charge the cell. Otherwise, cell overheating and fire may occur.
If improper charge termination occurs, the root reasons shall be found and resolved before reuse to avoid negative effects on electrical and safety perfomences.
It is forbidden to over-discharge. During the nom讼1 use of the cell, charge the cell regularly to keep the voltage above 2.8 V, so as to avoid over-discharge.
It is forbidden to use or place the cell at a high temperature environment. Othetwise, cell overheat, function failure or life shorten may occur.
During use, please connect the positive and the negative of the cell strictly according to the labels and instructions, and reverse charging is forbidden.
It is forbidden to use metal to directly connect the positive and the negative of the cell to short-circuit.
t is forbidden to use it in places with strong static electricity and strong magnetic fields; otherwise cell safety protection devices may be damaged and cause safety hazards.
It is forbidden to use plastic for cell encapsulation and electrical connection. Improper electrical connection may cause overheat during cell use.
