| Nominal Voltage / Capacity | 3.2V/100Ah |
| ACR | ≤0.5mΩ (AC 1kHz 25%SOC) |
| Charging Cut-off Voltage((Umax) | 3.65V |
| Discharging Cut-off Voltage(Umin) | 2.5 (0℃<T≤65℃) 2.0 (-20℃<T≤0℃) |
| Maximum charging current | 1C (25℃±2℃) |
| Charging Temperature | 0~65℃ |
| Discharging Temperature | -20~65℃ |

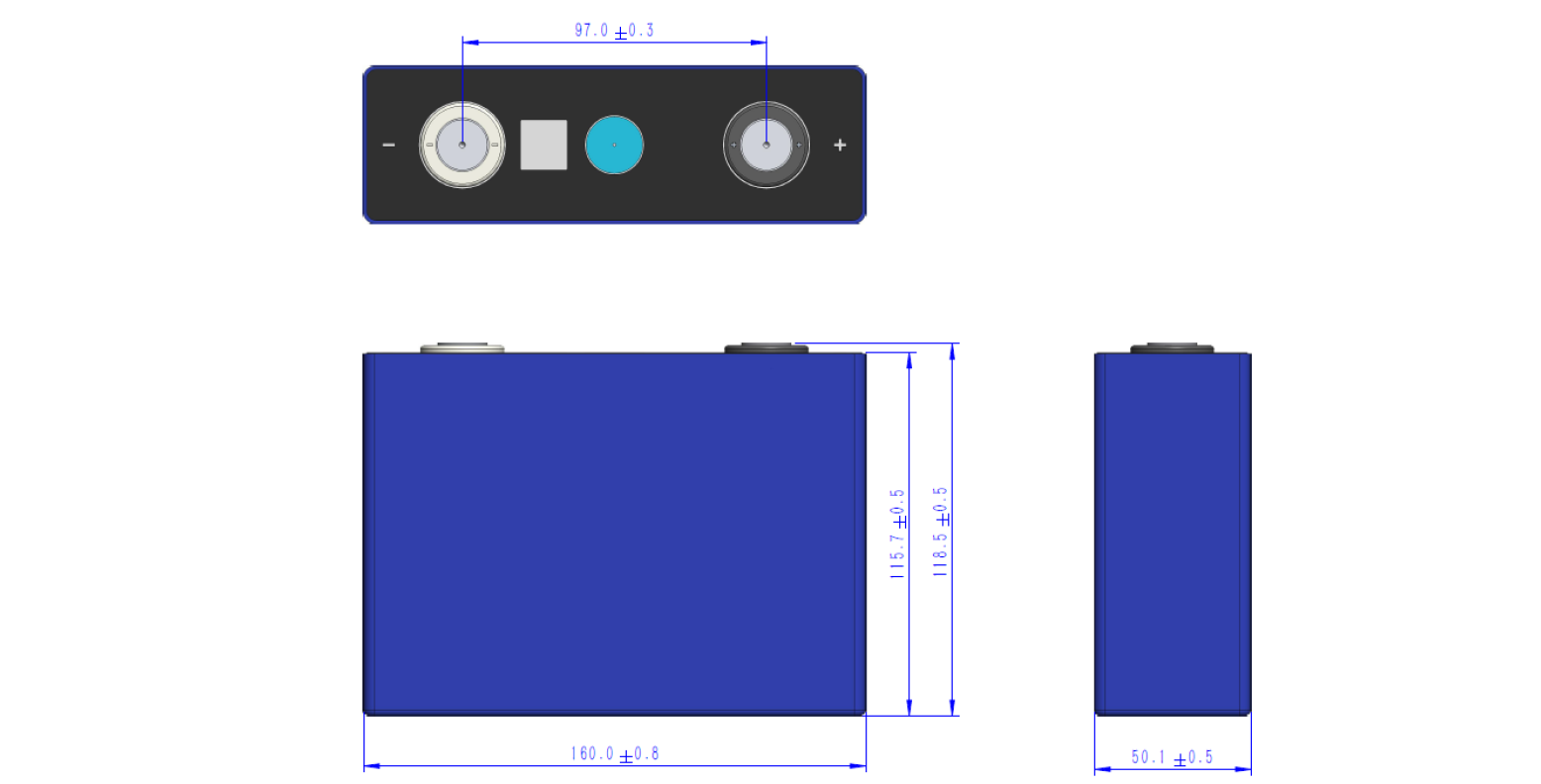

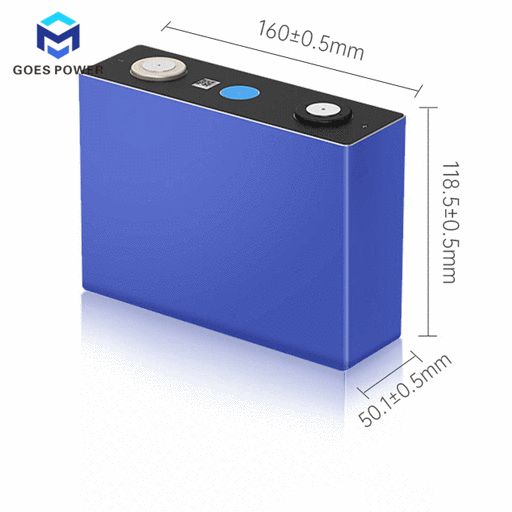

| Dimension | 50.1±0.5mm×160.0±0.8mm×118.5±0.5mm |
| Weight | 1985±100g |
Operation Precautions
It is strictly forbidden to immerse the battery in water. When it is not in use, it should be placed in a cool and dry environment.
It is forbidden to use and leave the battery next to heat and high temperature sources, such as fire, heater, etc.
Please use a special charger for lithium-ion batteries when charging.
During usage, it is strictly prohibited to reverse the positive and negative terminals of the battery.
Do not throw the battery in the fire or heater.
It is forbidden to use metal to directly connect the positive and negative terminals of the battery to short-circuit.
It is forbidden to transport or store the battery with metal, such as hairpins, necklaces, etc.
It is forbidden to knock or throw, step on, or bend the battery.
It is forbidden to directly weld the battery or pierce the battery with nails or other sharp objects.
It is forbidden to use or place the battery under high temperature (under hot sunlight), otherwise it may cause the battery to overheat or fail to function and shorten its life.
It is forbidden to use it in places with strong static electricity and strong magnetic fields; otherwise it will easily damage the battery safety protection device and bring hidden dangers of safety.
If the battery emits peculiar smell, heat, discoloration, deformation, or any abnormality during use, storage, or charging, immediately remove the battery from the device or charger and stop using it.
