EVE
| Nominal Voltage: | |
|---|---|
| Nominal Capacity: | |
| Standard Charge Current: | |
| Standard Discharge Current: | |
| Warranty: | |
| Quantity: | |
| Nominal Voltage/Capacity | 3.2V/15Ah |
| AC-IR | ≤2.5mΩ(AC 1 kHz@25°C 30%SOC) |
| DC-IR | ≤8mΩ(2C discharge30s@25°C 30%SOC) |
| End-of-charge Current | 0.75A(0.05C) |
| End-of-discharge Voltage | T>0°C@2.5V T≤0°C@2.0V |
| End-of-charge Voltage | 3.65V |
| Charging Temperature | 0~10℃ ≤3000mA 10~45℃ ≤7500mA 45~50℃ ≤6000mA 50~55℃ ≤3000mA |
| Discharge Temperature | -20~60℃ |

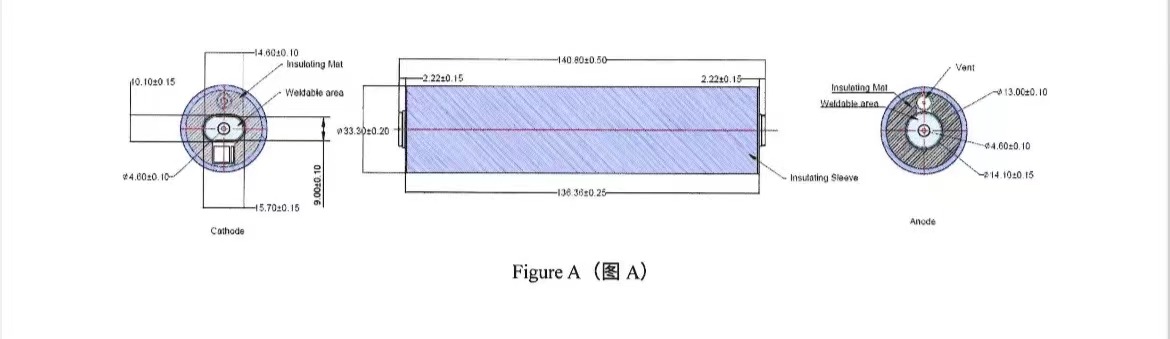

| Dimension | Diameter:Φ33.3士0.2mm (coated) Height: 140.8 土0.5mm (pole contained) Shoulder Height: 136 .36 士0.25mm (pole not contained) |
| Weight | 267±6g |
Precautions
Short Period Storage：①Storage the cell at temperature of 0°C - 45°C (less than 3 months), low humidity and no corrosive gas atmosphere.
②No press on the cell.
Long Period Storage：①In case of long period storage (more than 3 months), storage the cell at temperature range of 0°C - 25°C, low humidity, no corrosive gas atmosphere.
②No press on the cell.
Shipment:The capacity of delivery cell is approximately at 30% of charging. It is not specified more than 30% capacityremain at customer, because of self-discharge. During transportation, keep the cell from acutely vibration, impacting, solarization, drenching.
