Product Description
Home energy storage is an intelligent energy management solution for home users. Through home energy storage systems, such as home battery storage or thermal storage technology, residents can store excess electricity and release it during peak hours, optimizing energy utilization and reducing the difference between peak and valley electricity consumption.
|
Application
1.Grid frequency adjustment energy storage system
2.New energy communication base station, Core computer room, IDC ,UPS
3.New energy generation (solar, wind, PV/wind hybrid) access to energy storage system
4.Smart grid, micro-grid system
5.Mobile container storage system
6.Other energy Storage System
7.Peak load shifting energy storage system
8.Load tracking energy storage system
|
Data Sheet
| Model | Power Lite Series |
| Nomional Battery Energy | 5.12 kwh |
| Nomional Capacity | 100Ah |
| Nomional Voltage | 51.2V |
| Working Voltage Range | 48-57.6V |
| Nominal Current (Recommended) | 50A (0.5C) |
| Max Continuous Discharging Current (Cell) | 100A (1C) |
| Net weight | 43kg |
| Dimension (W*D*H) | 440*530*132 mm |
| Working Temp. Range | 0-50 deg C |
| Desingned Life-span | 6000 Cycles³ |
| Protection Level | IP20 |
| Communication | CAN/RS485/RS232/Dry Contact |
| Certificate | TUV/IEC 62619/CE-IEC 61000 IEC 62040/UN38.3 |
| Calendar Life | 10 Years |
|
System Advantages
1. High energy density and long life:
Lithium batteries have high energy density and long life, and can provide a long-lasting and stable power supply.

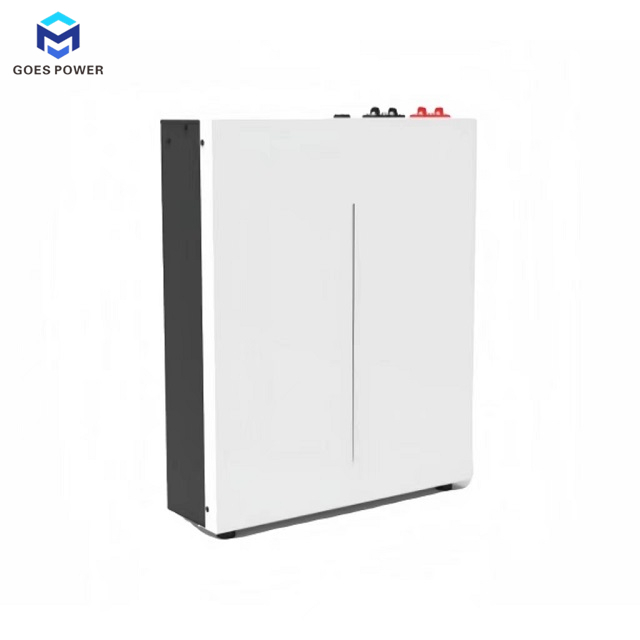

2. Lightweight and easy to install:
The wall-mounted design makes the energy storage battery easy to install, does not occupy ground space, and is suitable for various home environments.
3. Intelligent management and optimization:
The advanced intelligent management system can monitor and optimize the charging and discharging process in real time, improve the safety and efficiency of the battery.
4. Environmental protection and sustainable development:
Effectively utilize renewable energy, reduce carbon emissions, promote environmental protection and sustainable development, and conform to the modern green life concept.
5. Flexibility and scalability:
The energy storage system has good flexibility and scalability, and can expand capacity and upgrade functions according to household electricity demand.
|
Comment & FAQ
1.Do you have MOQ?
A: No limited. More quantity has better price, we will check the best price for you.
2. What types of batteries are included?
A: Including wall mounted, stacked, rack mounted, cabinet mounted, wall mounted and other household energy storage batteries; Power batteries for marine, RVs, tricycles, motorcycles, and electric vehicles Battery.
3. ls the battery used in the battery pack grade A?
A: Yes, we only use Grade A and Brand new cells inside.
4.Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match Voltage:The deviation less than 0.01V Resistance:The deviation less than 0.1mΩ
Capacity: Tested and label the data on each cell.
|
Available Models
MODEL | 4850HW | 4880HW | 48100HW | 48120HW | 48150HW | 48200HW |
Rate voltage(Vdc) | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 |
Rate capacity(AH) | 50 | 80 | 100 | 120 | 150 | 200 |
Energy storage(KWH) | 2.56 | 4.096 | 5.12 | 6.144 | 7.68 | 10.24 |
Cycle life | ≥6000 cycles to85%DOD | |||||
Months self discharge | ≤2% | |||||
Efficiency of charge | 100%at 0.2C | |||||
Efficiency of discharge | 96-99%at 1C | |||||
Charge voltage | 58.4 | |||||
Charge mode | 0.2C to 58.4V,then 58.4V,charge current to 0.02C(CC/CV) | |||||
Charge current(A) | 10 | 16 | 20 | 24 | 30 | 40 |
Max.Chargecurrent(A) | 50 | 80 | 100 | 120 | 120 | 200 |
Charge cut-off voltage(VDC) | 58.4 | |||||
Contiunous current(A) | 50 | 80 | 100 | 120 | 120 | 200 |
Discharge cut-off voltage(VDC) | 44.8 | |||||
Charge temperature | 0℃to45℃(32Fto113F)@60±25%Relative Humidity | |||||
Discharge temperature | -20℃to60℃(-4Fto140F)@60±25%Relative Humidity | |||||
Storage temperature | 0℃to40℃(32Fto104F)@60±25%Relative Humidity | |||||
IPclass | IP43 | |||||
Material system | LiFePO4 | |||||
Case material | Metal | |||||
Case Type | Rack/WallMount | |||||
Pack Dimensions(L*W*H(mm)) | 455*390*150 | 570*410*155 | 570*410*155 | 600*450*190 | 860*485*190 | 860*485*190 |
Package Dimension(L*W*H(mm)) | 610*485*250 | 610*485*250 | 610*485*250 | 675*525*265 | 950*575*250 | 950*575*250 |
Net Weight(kg) | 28.3 | 40.4 | 45.0 | 48.3 | 67.4 | 83.8 |
Gross Weight(kg) | 31.2 | 42.7 | 48.2 | 52.0 | 70.1 | 86.4 |
Terminal | M8 | |||||
Protocol(Optional) | CANBus/RS485/RS232 | |||||
