| Nominal Voltage: | |
|---|---|
| Capacity: | |
| Energy Power: | |
| Warranty: | |
| Quantity: | |
|
Product Description
Stacked engery storage batteries are battery-powered generators that can power your devices and appliances. They use a rechargeable battery to provide off-grid electricity for laptops, smartphones, tablets, cameras, and home appliances. Powerever offers different capacities and outputs to suit your needs. They also have a fast recharging efficiency.
|
Application
|
Data Sheet
Nominal Voltage | 48V/51.2V |
| Capacity | 100Ah/200Ah/300Ah/400Ah |
| Energy Power | 4.8/5.1/9.6/14.4/19.2Kwh |
| Equalized Charge Voltage | 54.75V |
| Max.Continuous Charging Current | Unimodule （Recommended 52A ） Two modules（ Recommended 104A） Three modules（Recommended 156A） Four modules （Recommended 208A） |
Max.Continuous Discharging Current | Unimodule （Recommended 52A ） Two modules（ Recommended 104A） Three modules（Recommended 156A） Four modules （Recommended 208A） |
| Max C Rating | Recommended current Unimodule （Recommended 52A ） Two modules（ Recommended 104A） Three modules（Recommended 156A） Four modules （Recommended 208A） |
| Communication Interface | RS48/RS232/CAN communication |
| Relative humidity | 5% ~ 85%RH |
| Working Temperature | -20℃ ~ +55℃ |
| Discharge Temperature Range | -20℃ ~ +55℃ |
| Charging Temperature Range | 0℃~ +55℃ |
|
System Advantages
1.This product is composed of high-quality lithium iron phosphate aluminum shell cells, high-efficiency BMS, and anti-static metal shell. The square aluminum shell cell has high stability and fast heat dissipation. The BMS effectively manages overcharge and over discharge, short circuit, and over temperature. The thickened metal shell has better protection performance.
2.Stacked energy storage battery can provide 100A continuous discharge and 100A charging capacity (recommended charging below 100A); It supports 6000 cycles of 80% DOD. A larger capacity battery pack can be formed by parallel connection to meet the long-term power supply needs of users. The closed line design is adopted to effectively prevent dust and mosquitoes from blocking the interface and increase the safety of use.
|

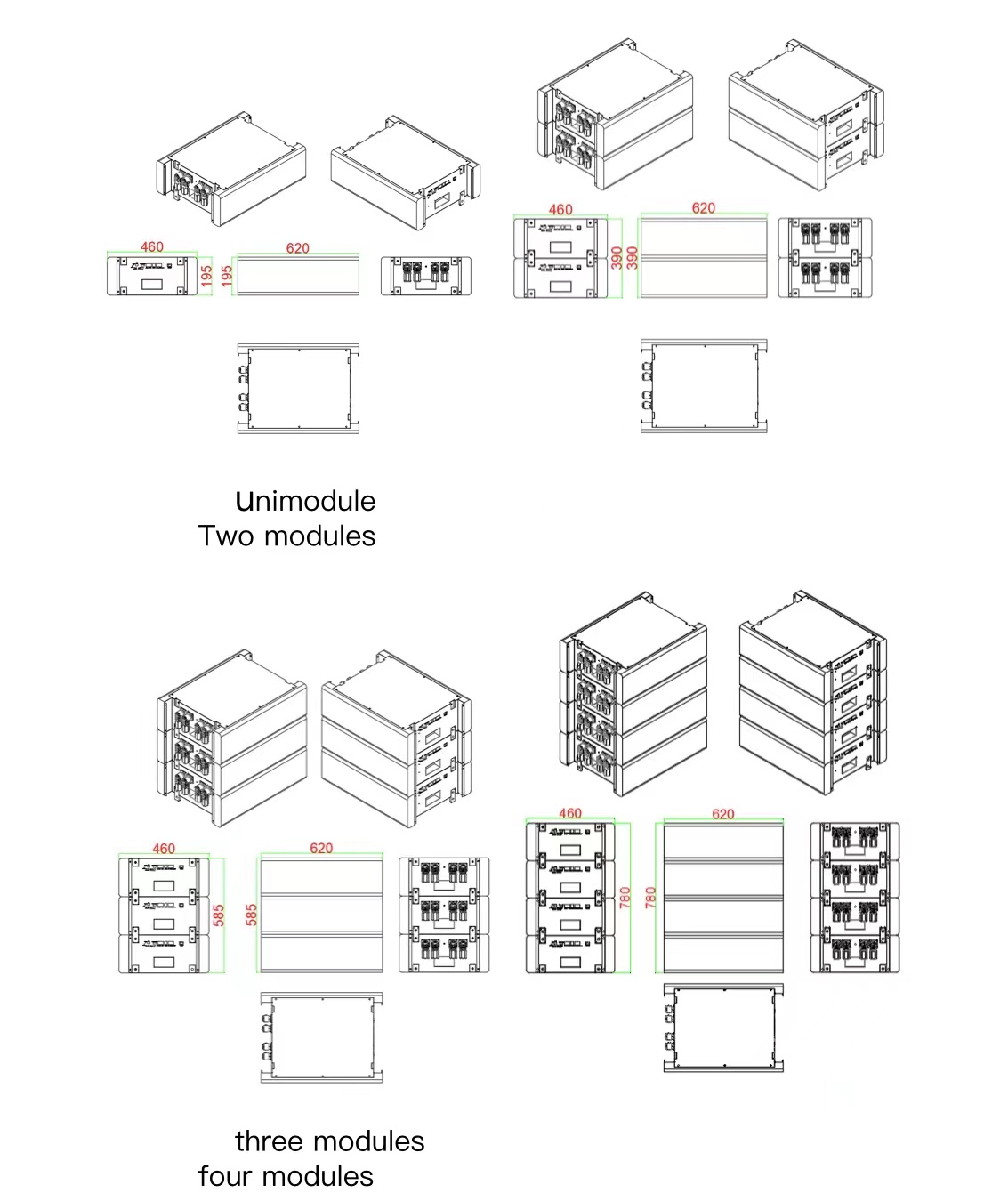

Dimension
|
Comment & FAQ
1.Is the battery safe?
A:Yes,Our products have strict quality inspections before sending,It uses high-quality battery cells. Due to the BMS system, there will be no explosion to protect your safety.
2.What are the advantages of your company?
A:Strong R & D team, independent R & D and production of main parts, to control product quality from the source.
3.Can you supply OEM &ODM service ?
A:Yes, Welcome to contact us for more information.
4.How do you ship the goods since they are high capacity battery ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
|
Avaliable Models
MODEL | GP48100 | GP48200 | GP48300 | GP48400 | GP48500 |
Batteries materials | Lithium iron phosphate | ||||
Series parallel mode (S series, P parallel) | 16S1P | 16S1P | 16S1P | 16S1P | 16S1P |
Rate voltage | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |
Rate capacity | 100Ah | 200Ah | 300Ah | 400Ah | 500Ah |
Size(mm) | 610*530*190 | 610*530*380 | 610*530*570 | 610*530*760 | 610*530*950 |
Weight | 54.4kg | 108.8kg | 163.2kg | 217.6kg | 272kg |
Color | Optional | ||||
Parallel support | Parallel terminals are supported | ||||
Output port mode | terminal | ||||
Charging way | CC/CV | ||||
Charging current | 0.2C(standard) | ||||
Maximum charging current | Max1C @25℃ | ||||
Charge cut-off voltage | 58.4V | ||||
Discharge way | CC/CP/VP | ||||
Discharge current | 1C | ||||
Maximum discharge current | Max1C @25℃ | ||||
Discharge cut-off voltage | 44.8V | ||||
Communication interface | RS485/RS232/CAN | ||||
Charging operating temperature | charging:0~+50℃ | ||||
Discharge operating temperature | discharge:-20~+55℃ | ||||
Inverter | 8KW-10KW | ||||
The quality assurance period | 60 months | ||||
